1 LTR. BOTTLING PROJECT

HOW TO START A BOTTLED WATER BUSINESS

Bottled water businesses deal in the bottling and distributing of drinking water to consumers. Whether purified, distilled, or natural spring water, your bottled water business will supply your customers with ample hydration. Taking the steps to start your own bottled water business can be a satisfying experience that allows you to make money while also helping your customers achieve a healthy lifestyle.

Learn how to start your own Bottled Water Business and whether it is the right fit for you.

Ready to form your Brand .

Start a bottled water business by following these 10 steps:

Plan your Bottled Water Business
Form your Bottled Water Business into a Legal Entity
Register your Bottled Water Business for Taxes
Open a Business Bank Account & Credit Card
Set up Accounting for your Bottled Water Business
Get the Necessary Permits & Licenses for your Bottled Water Business
Get Bottled Water Business Insurance
Define your Bottled Water Business Brand
Create your Bottled Water Business Website
Set up your Business Phone System

We have put together this simple guide to starting your bottled water business. These steps will ensure that your new business is well planned out, registered properly and legally compliant.

Exploring your options? Check out other small business ideas.

RO MACHINE FSS

CARTRIDGE FILTER [5 Micron] : 2 No.
RO MEMBRANES : 80*40 ( Dow Filmtec/ Hydronautics)
NO. OF MEMBRANES : 10
MEMBRANE HOUSING : 5 ( Stainless Steel/ FRP)
NO. OF HOUSING : 2
HIGH PRESSURE PUMP [5.5HP 5-29 ] : One (Lubi/ CNP)
PRESSURE GAUGES [0-25 & 0-40] : One Each
SKID [SS] : One
ROF INDICATOR : Two
CONDUCTIVITY INDICATOR [0-200 μs] : One
INTERCONNECTING PIPEWORK : One Lot SS
LP SWITCH [SS] : One
FRP Vessel 32-72 : 2 (STAINLESS STEEL)
Tds ,meter online : 1 (Digital) Aster
Frame : 2 Inches Stainless Steel ( Jindal)
Pannel box :1 (L&T)
Sand Chemical : 300 kg
Carbon Chemical : 200 kg (Coconut )
Pipework and Supply : STAINLESS STEEL (Jindal)
20. Multiport valve : 2 inches( Initiative/ Medas)
Ultra Violet System : Stainless Steel (Starlite )
Ozonator System: 4 Grams
Raw water Pump – 2 HP ( Kirlosker / Shakti )

SEMI AUTO MOLDING MACHINE 2KVT

Product Details:

Minimum Order Quantity	1 Unit
Machine Type	Semi-Automatic
Bottle Size	30 ml to 2000 ml
Power Source	Electricity
Speed	variable
Country of Origin	Made in India
Power Consumption	30 KV
Frequency	50HZ
No of mould cavity	2 Cavity
Brand	Good
Material	Mild Steel
Production Capacity (Bottles/Hr)	1000-1200
Raw Material of Bottle	Pet Preform
Automation Grade	Semi-Automatic

We are well known suppliers and manufacturers of Blow Molding Machines. The provided product is a whole body type machine which adopts extruding molding process. These machines have key features which are high production capacity, durability, efficiency and functionality. They are also required to save energy and are carried out in cost effective manner. Blow Molding Machines are availed in distinctive sizes as per our customers diverse technical specifications. All the models of this machine are accessible to molds changing and calibrating unit.

SEMI AUTO MOLDING MACHINE 4KVT

Product Details:

Type	Blow Molding
Raw Material	PE
Mould Cavity	4 cavity
Automation Grade	Semi-Automatic
Capacity	1800-2000
Weight	1500 kg
Max Volume	1 L
Power	10 kW
Size of The Machine	13 X 7 X 9.5 (L x W x H)

We are a trusty worthy organization offering a wide a gamut of PET Blow Molding Machine.

AUTOMATIC MOLDING MACHINE 3KVT

The manufacturers of Pet blowing machines. Along with the Pet blowing machine, we also deal in water bottling machines and mineral water bottling plants. The main purpose of our Automatic Pet Blow Moulding machine is to manufacture a lot of high-quality pet bottles. Our customer can easily operate and maintain the machine for which we have simplified the technology.

Our pet blowing machine can blow up to one and half litre water bottles as well as CSD bottles. We are an experienced and technically capable manufacturer of pet blowing machines for mineral water and cold drinks.

Automatic Pet Bottle Blowing Machine 3KVT
Production Output	2000 BPH
Maximum Volume	1000 ML
Maximum Height	360 MM
Maximum Diameter	100 MM
Total Power Consumption	33 KW
Machine Dimension (LWH)	2300 x 1500x 2200 MM
Machine Weight	1650 KG

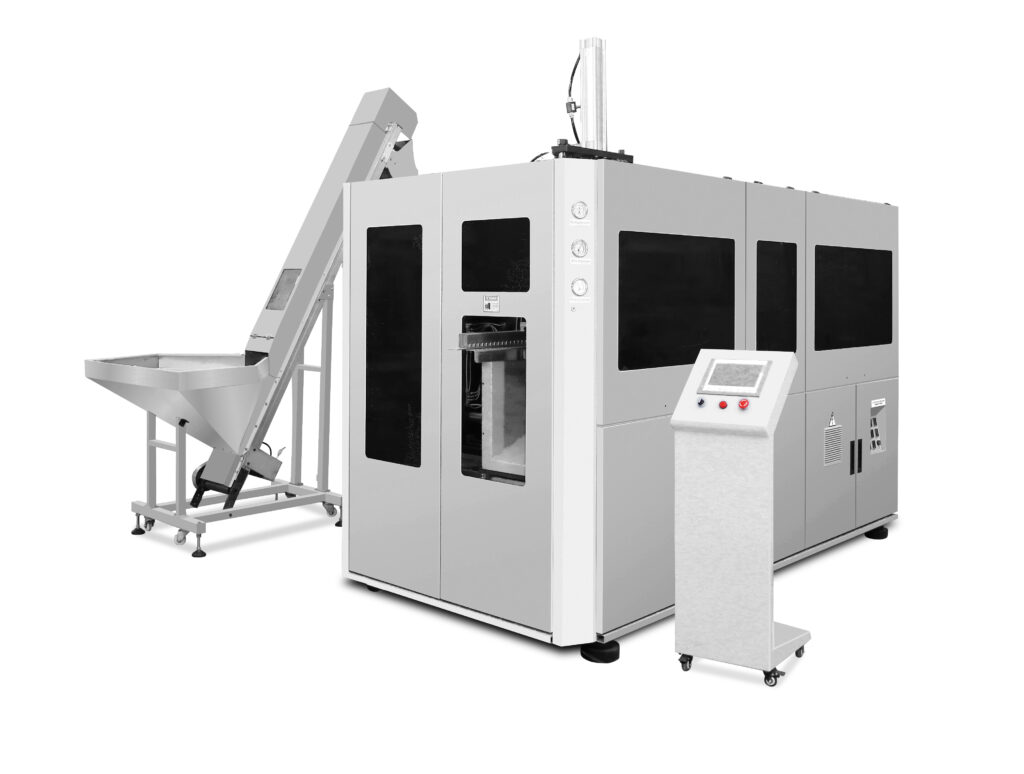

AUTOMATIC MOLDING MACHINE 4KVT

The ULTRA-Z manufacture of mineral water plant machineries. We also offer different types of Pet blowing machines among which is our 4 KVT Pet blowing machine.

We have developed this 4 KVT Pet Blowing Machine with the purpose of producing more pet bottles. Simplifying the technology will enable our customers to use and maintain the Automatic Pet Blow Molding Machines independently. This automatic pet blowing machine works effectively in the blowing of soda and water bottles, among many others.

We are PET blowing machines, mineral water, and cold drink bottle manufacturers based in sound scientific learning supported by experience.

Automatic Pet Blowing Machine 4KVT
Production Output	3000 BPH	4000 BPH	6000 BPH
Maximum Volume	1000 ML	150 ML	150 ML
Maximum Height	300 MM	350 MM	340 ML
Maximum Diameter	72 MM	100 MM	100 MM
Total Power Consumption	33 KW	64 KW	58 KW
Machine Dimension (LWH)	2300×1500 x2200 MM	3400 x1550 x2200 MM	3400 x1550 x2200 MM
Machine Weight	1650 KG	3450 KG	3450 KG

AUTOMATIC MOLDING MACHINE 5KVT

ULTRA-Z provide high-quality and highly efficient Pet Blowing Machines of paramount importance among them is the 5 KVT Pet blowing machine.

Higher production with less investment has been achieved by this 5 KVT Pet Blowing Machine. We have simplified the technology of this fully automatic Pet Blow Molding Machine so that our customers can operate and maintain it independently. Easily operable, this machine is capable of producing up to one-liter bottles for water and other beverages.

We are an experienced and technically skilled manufacturer of Pet blowers for mineral water and cold drink bottles.

5 KVT Automatic Automatic Pet Bottle Blowing Machine
Production Output	7500 BPH
Maximum Volume	1000 ML
Maximum Height	300 MM
Maximum Diameter	75 MM
Total Power Consumption	58 KW
Machine Dimension (LWH)	3400 x 1550 x 2200 MM
Machine Weight	3450 KG

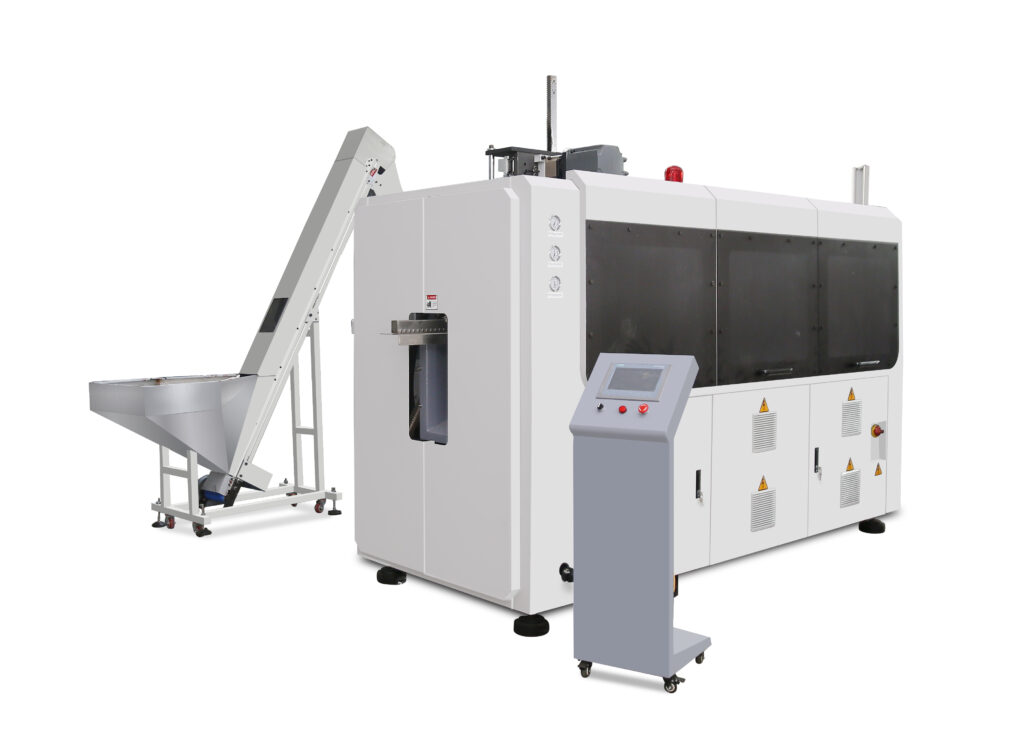

AUTOMATIC MOLDING MACHINE 6KVT

manufacture 6 KVT Pet Blowing Machines, targeted to meet the high output stresses faced in the bottling industry. Besides our pet blowing machines, we also provide water bottling machines and complete mineral water bottling plants.

The 6 KVT PET Blowing Machine is designed for high volume, high-quality bottles with minimal effort required. This machine has a very friendly interface and the technology is smoothened to make handling easy for operators. It is capable of producing up to 1.5 liters bottles that are suitable for water, soda, and other beverages.

We pride ourselves on our sound engineering and rich experience; hence, we are a reliable manufacturer of PET blowing machines for various bottling requirements.

Automatic Pet Stretch Blow Moulding Machine 6KVT
Production Output	9000 BPH	12000 BPH
Maximum Volume	1000 ML	1500 ML
Maximum Height	300 MM	340 MM
Maximum Diameter	80 MM	30 MM
Total Power Consumption	58 KW	126 KW
Machine Dimension (LWH)	3300 x 1400 x 2200 MM	5200 x 1800 x 2300 MM
Machine Weight	3500 KG	5000 KG

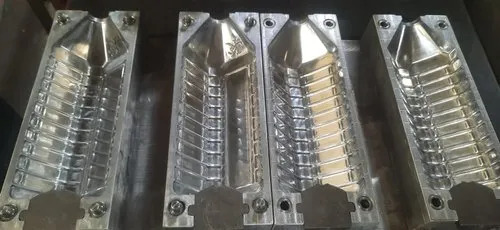

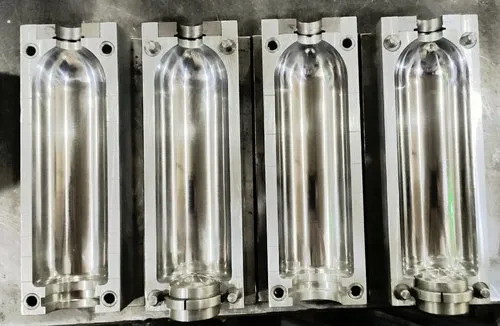

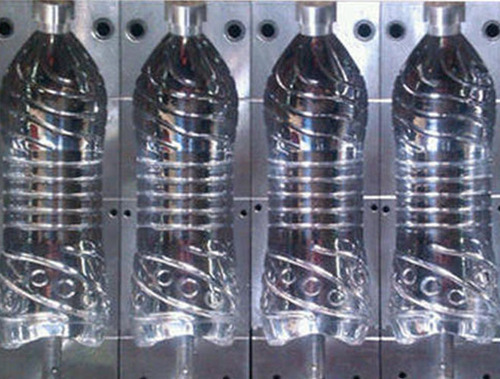

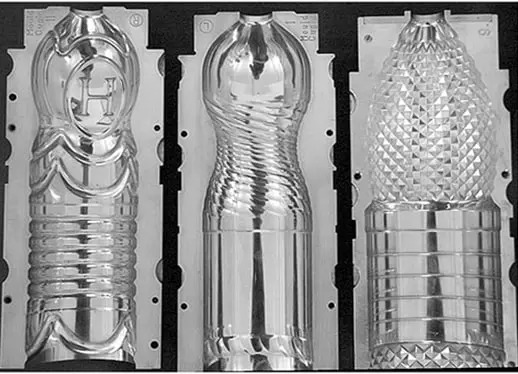

BOTTLES BLOW MOULDS

ULTRA-Z is a company that specializes in the creation, design, and production of stretch as well as blow moulds. We have an established track record of designing and manufacturing high-efficiency moulds on time. As a well-known industry participant, we manufacture and offer a wide range of PET Bottle Mould.

Used in the manufacture of pet bottles, containers, and jars.

Bottle Blow Moulds are made available in a wide range of finishes. These bottle blow moulds are designed employing the newest technology support, as well as contemporary tool rooms and CNC machining centres, to offer them with an optimum construction finish. Furthermore, the use of stainless steel or aluminium metals in mould construction results in better-polished bottle surfaces and clear-cut shapes of final finished bottles.

Features :

Experience in providing a wide range of Bottle Blow Moulds.
Can be designed and developed to meet the individual process requirements of the customer.
Moulds created with cutting-edge technology, as well as a contemporary tool room and CNC machining centres, to ensure the best possible construction finish.
Moulds are offered in stainless steel or aluminium construction support, resulting in better-polished bottle surfaces and clear-cut shapes.
Includes a water circulation system to help minimize the shaping time of the bottle and provide a higher final quality.
High demand for moulds in the plastics and polymers sectors.

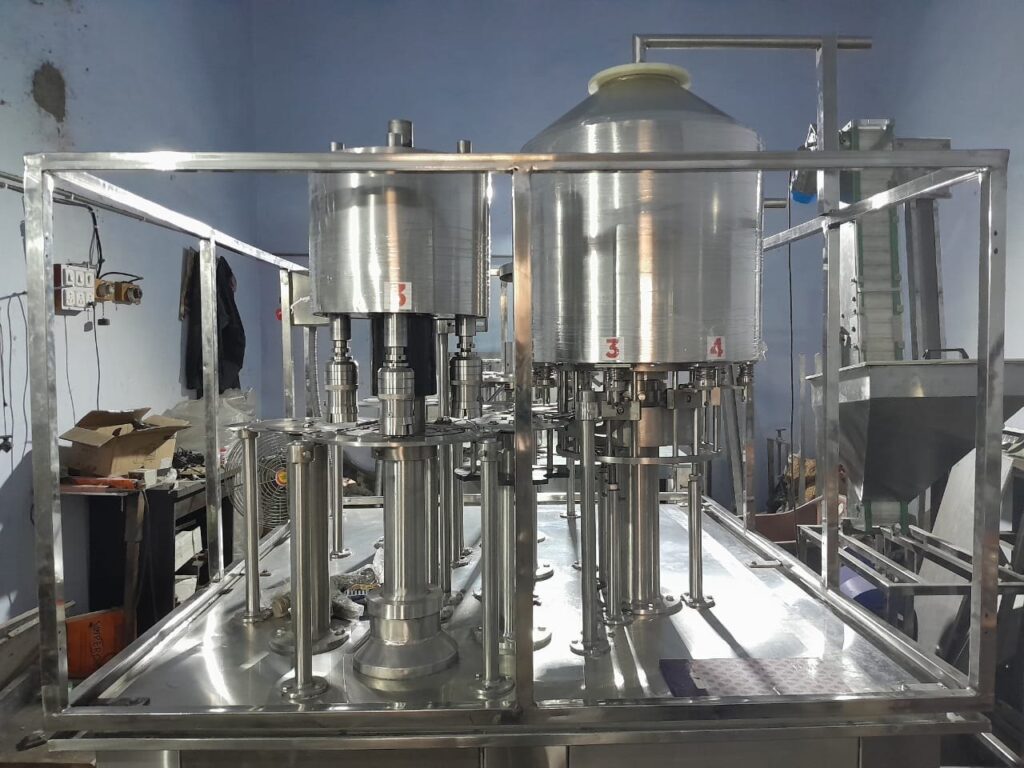

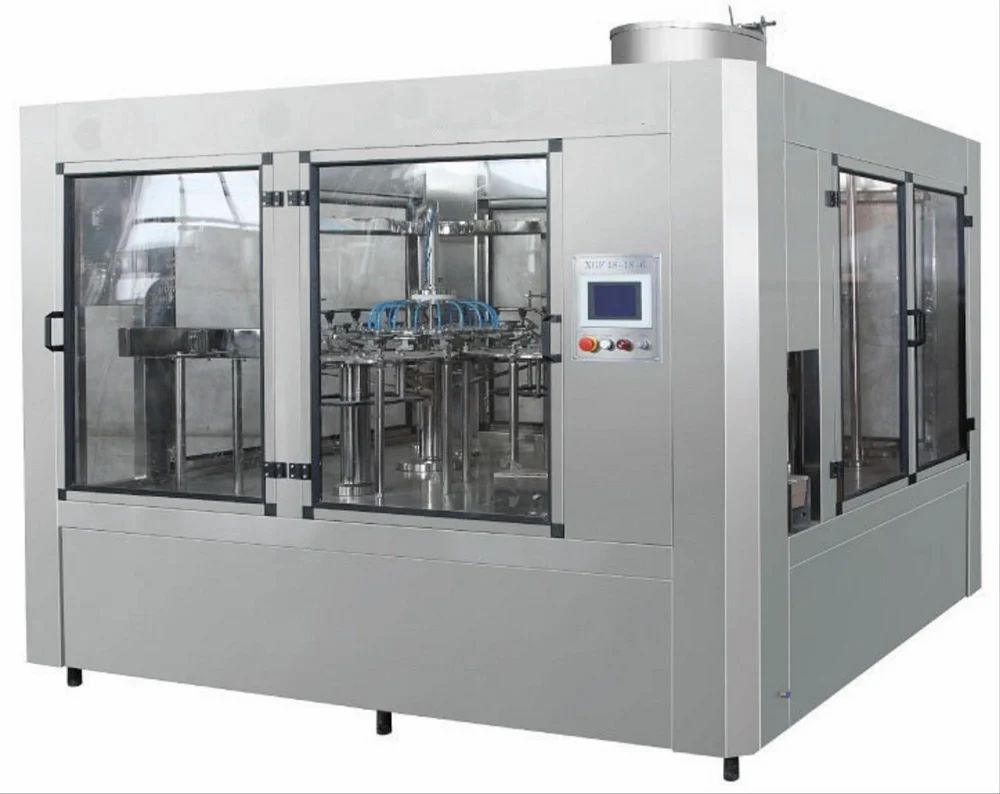

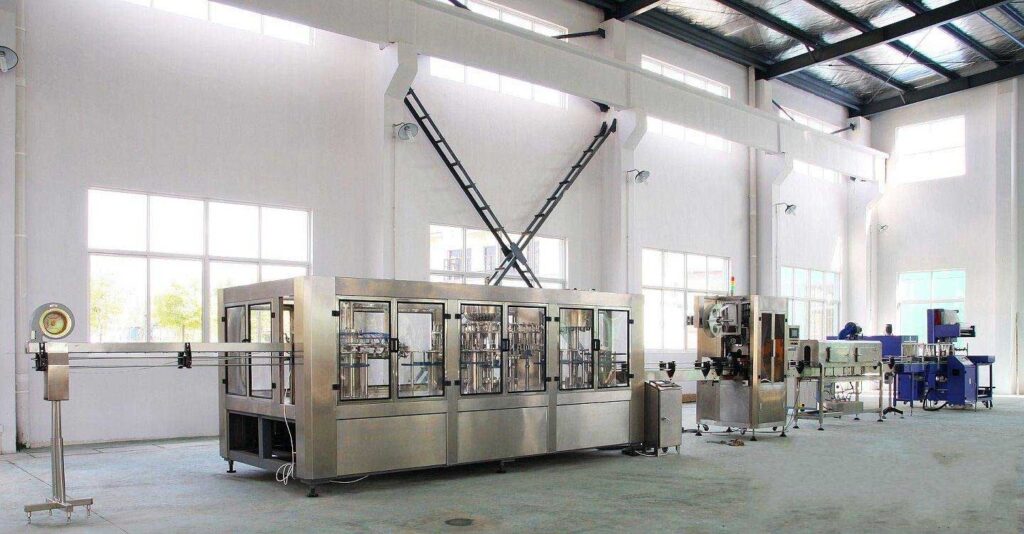

RFC MACHINE

ULTRA-Z offer Fully Automatic Mineral Water Filling Machine that are very efficient and have the highest level of accuracy. Our Water Filling Machine suit various production demands, where capacity varies from 24 BPM to 200 and even more BPM to meet the needs of small and large bottling businesses

This starts with an integrated conveyor line which moves the empty bottles to the filling process. Here, water is dispensed with accuracy; It is controlled through the help of a Programmable Logic Controller (PLC). This advanced system helps maintain the proper fill levels making it difficult to waste resources and displaying efficiency. After the rinsing and filling, bottles are tightly capped or closed in the same Water Filling Machine. Such automation ensures compulsive hygiene and quality standards are met to the required industrial demands specified in the delivery of fast and reliable bottle fills.

Our Mineral Water Filling Machine are being used in water packing industries, beverage factories, and other companies that call for quick, efficient and accurate filling processes. Designed and developed with the latest innovations in technology, our machines not only increase efficiency in providing bottles filled but also guarantee the quality of the bottles being produced.

Get top-notch bottling solutions from Aim Technologies, a leading Water Bottle Filling Machine Manufacturer. Your success is our priority.

40 BPM Water Bottle Filling Machine

ULTRA-Z is a leading 40 BPM Water filling manufacturer & exporter . Our 40 BPM water bottle filling machine is perfect for mineral water filling from 200ml to 2000ml in same machine.

Technical Specification:

R.O. Capacity	3000 LPH
Rising Head	8
Filling Head	8
Capping Head	4
Bottle Size	200ml – 2000ml
Air Conveyor	8 Ft.
Power Consumption	3 KW

60 BPM Water Bottle Filling Machine

Our 60 BPM filling machine is having round Tank with 12 head filling nozzles. The filling valves are designed to fill mineral water from 200 ml to 2000 ml. Our bottle filling machine is also provided with 4 sets of special capper, with Capping Die to tighten the cap of your mentioned size.

Technical Specification:

R.O. Capacity	4000 LPH
Rising Head	10
Filling Head	10
Capping Head	4
Bottle Size	200ml – 2000ml
Air Conveyor	8 Ft.
Power Consumption	4 KW

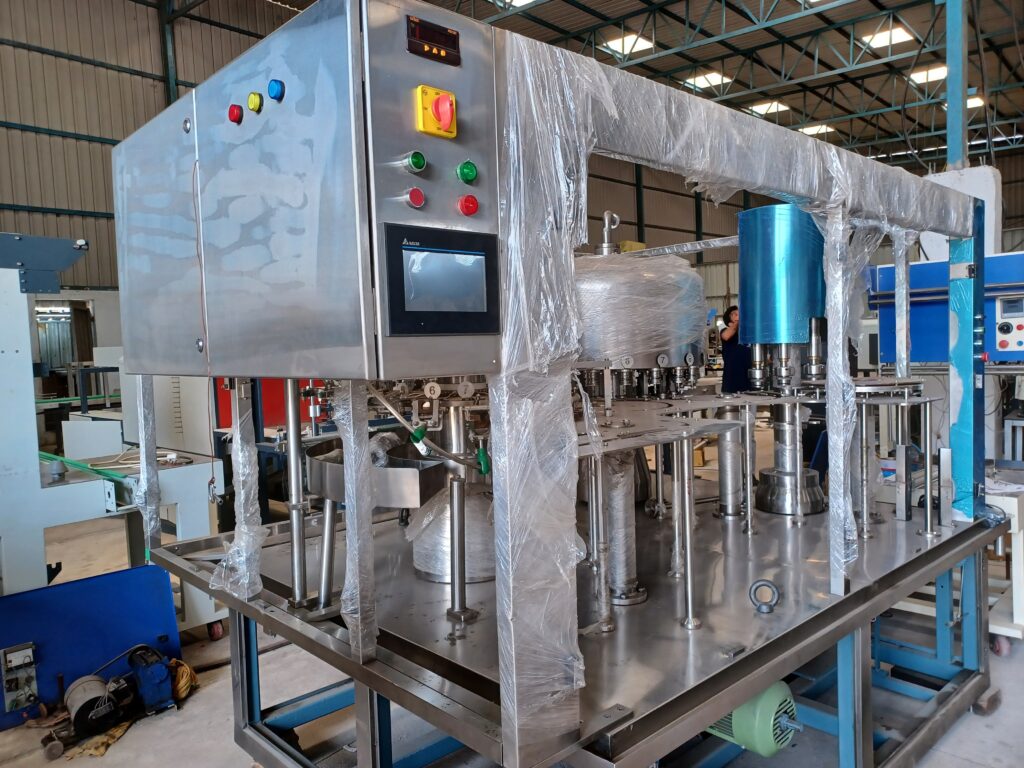

90 BPM Water Bottle Filling Machine

ULTRA-Z is a renown manufacturer & exporter of 90 BPM Water Filling Machine . Our 90 BPM Automatic Water Bottle Filling Machine is perfect for mineral water filling from 200 ml to 2000 ml in same machine.

Technical Specification:

R.O. Capacity	6000 LPH
Rising Head	18
Filling Head	18
Capping Head	6
Bottle Size	200ml – 2000ml
Air Conveyor	8 Ft.
Power Consumption	5 KW

120 BPM Water Bottle Filling Machine

ULTRA-Z is the bottle Automatic Water Filling Machine manufacturer. Our 120 BPM Automatic Water Filling Machine is perfect for mineral water filling from 200 ml to 2000 ml in same machine.

The Automatic Water Filling Machine is equipped with 24 head rinsing nozzles which allow the bottles to get washed from inside. Our 120 BPM filling machine is having round Tank with 24 head filling nozzles. The filling valves are designed to fill mineral water from 200 ml to 2000 ml. Our bottle filling machine is also provided with 8 sets of special cappers, with Capping Die to tighten the cap of your mentioned size.Our bottle automatic water filling machines have features such as excellent performance which requires minimum maintenance, making it highly in demand among our customers.

Technical Specification:

R.O. Capacity	8000 LPH
Rising Head	24
Filling Head	24
Capping Head	8
Bottle Size	200 ml – 2000 ml
Air Conveyor	8 Ft.
Power Consumption	6 KW

200 BPM Water Bottle Filling Machine

ULTRA-Z is the Bottle Water Filling Machine manufacturer. Our 200 BPM Bottle Water Filling Machine is perfect for mineral water filling from 200 ml to 2000 ml in same machine.

The Bottle Water Filling Machine is equipped with 40 head rinsing nozzles which allow the bottles to get washed from inside. Our 120 BPM filling machine is having round Tank with 40 head filling nozzles. The filling valves are designed to fill mineral water from 200 ml to 2000 ml. Our bottle filling machine is also provided with 10 sets of special cappers, with Capping Die to tighten the cap of your mentioned size.

Technical Specification:

R.O. Capacity	8000 LPH
Rising Head	20
Filling Head	40
Capping Head	10
Bottle Size	200 ml – 2000 ml
Air Conveyor	8 Ft.
Power Consumption	9 KW

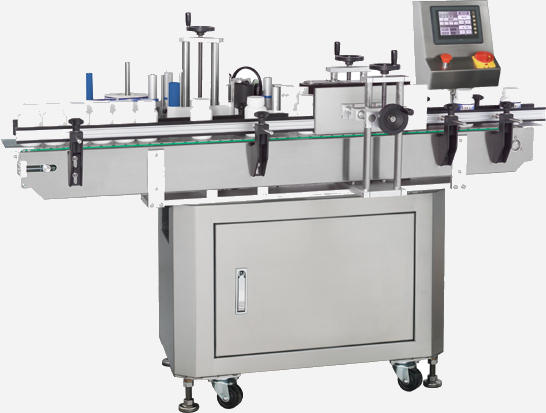

STICKER LABELING MACHINE

ULTRA-Z is a leading Labeling Machine Manufacturer. Our Labeling Machine is exceptional equipment to label goods with efficiency by cutting down on time, increasing accuracy and efficiency, and most importantly, minimizing the costs. Combining sophisticated technology, the Labeling Machine is programmed to capture the speed of the conveyor belt and position the label correctly on the product. This particular feature allows the correct positioning of the labels to prevent misalignment hence lesser wastage in an organization.

The Sticker Labeling Machine is designed to accommodate various products and therefore can be used to label products from the food and beverage processing industries, cosmetics and pharmaceutical industries, among others. Due to the fact that it is flexible, it is designed to work with bottles of different shapes, sizes, and packaging materials making it suitable for use by both small and large businesses. Convenient and designed for operator control, our Labeling Machine can be adjusted presumably without much difficulty, and large operations can be maintained without much complication. This is meant to ensure that your operations are continuous and efficient, towards enabling a high throughput.

Model	ULTRA-SLM- 100
Direction of Movement	Left to Right
Output/Min*	Up to 100 Labels / Min.
Power Supply	2.0 kW Single Phase 230V, 50Hz AC Supply (Can Customized as Client Need)
MOC	Stainless Steel 304, Anodized Aluminum,
Machine Dimension	L 2500 mm * W 2100 mm * H 1500 mm
Label Dispenser	Stepper Motor / Servo Motor
Label Roll Core	76 mm
Label Roll Diameter	300 mm

Bottle Diameter	30~90 mm (special size can be customized)
Bottle Height	30~280 mm (special size can be customized)
Bottle Orientaion System	Belt / feed screw orientation (Mechanically synchronized)
Label Material	Self-adhesive sticker
Stop Tolerance	+/- 1 mm.
Label Height	12 MM to 200 MM
Gap between Two Labels	Min. 3 MM
Printer device	According to customer’s requirement
Machine weight (kg)	600

INK PRINTING MACHINE

Product Specification

Model Name/Number	AX 350i
Brand	Domino
Automation Grade	Automatic
Ink Color	Black
I Deal In	New Only
Country of Origin	Made in India
Minimum Order Quantity	1

Product Description

Whether you’re printing onto beverage cans, food containers, electronic PCBs or cables, the Ax350i provides cutting edge technology to enhance your product and maximise your production. Based on a highly-flexible modular design, the Ax350i offers an extensive range of printed drop sizes, ink types and configurations to tailor to your requirements.

The Ax350i features a range of i-Pulse printheads optimised for high-impact text printing, bar codes and QR Coding. The extensive i-Pulse ink range includes MEK-free and highly-pigmented options, as well as specialised inks for direct food contact, cable marking, PCB production and many more industry specific requirements.

All ink and make-up changes are quick and easy, thanks to the intelligent consumable system and the i-Tech module removes the cost and inconvenience of traditional servicing.

The powerful Ax350i benefits from the i-Techx electronics platform and provides a class-leading user experience on a range of touchscreen sizes. It is fully compatible with Industry 4.0 standards, with Domino Cloud & Domino Automation systems and third-party production systems.

Domino Cloud allows remote diagnostics and monitoring capability, providing the data and tools to ensure printing is a contributor to better packaging and processing systems management.

The latest high-performance CIJ printer from Domino, the Ax350i builds on a strong global reputation for outstanding OEE and reliability. The Ax350i is an ideal choice for modern coding applications.

Replacing the Domino i-Tech A320i and A420i printers, the Ax350i with its advanced Quality Management Module (QMM) and ink management systems, provides a flexible, high capacity and high quality CIJ printer. High performance and reliability deliver outstanding Overall Equipment Efficiency (OEE) with a range of print head variants and high performance dye and pigmented inks ensuring the ability to meet all modern coding needs, whether in food, beverage, pharma or industrial applications.

LASER PRINTING MACHINE

A state-of-the-art device that can print fine, precise markings on plastic jars and bottles is a laser printing machine for plastic bottles. This machine is a great option for companies that need to label their products consistently and reliably because it is fitted with cutting-edge technology that provides precision and efficiency in printing.

With a working accuracy of 0.002mm, the Laser Printing Machine for Plastic Jar Bottle can generate incredibly fine and accurate markings on the surface of plastic jars and bottles. It can produce markings up to 0.5mm deep and is powered by a 20W laser, making a variety of applications possible.

The equipment controls the temperature via air cooling, ensuring that the laser performs at its best. Given that it has a marking surface of 110x110mm, a sizable area can be marked at once. Furthermore, it has a marking speed of 12000 mm/s, allowing it to quickly mark a huge number of jars and bottles.

A 10-inch display that makes it simple to reach the controls is included with the Laser Printing Machine for Plastic Jar Bottles. It can easily handle a variety of plastic materials thanks to its intermediate speed galvanometer laser head and 1064nm laser wavelength. The machine will last for many years with regular care because the laser source can last up to 100,000 hours.

SHRINK WRAPPING MACHINE

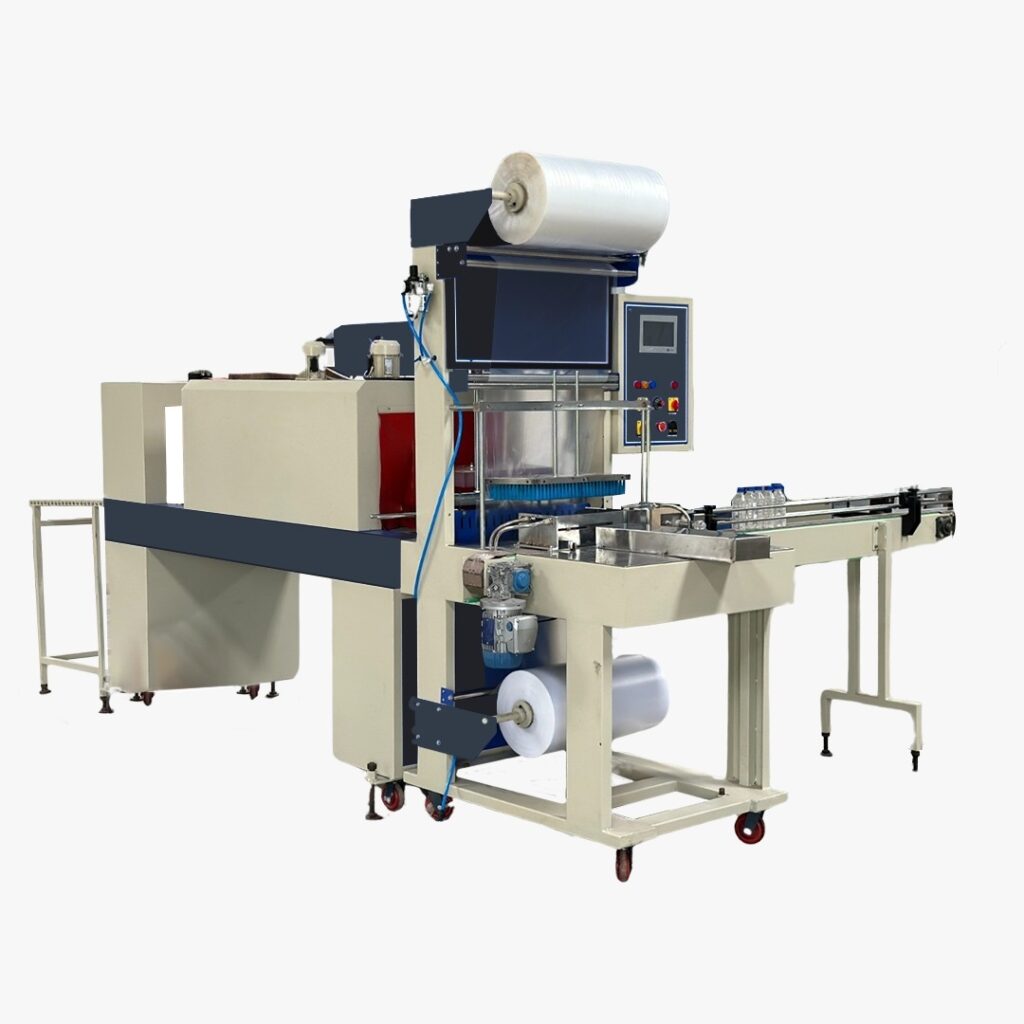

Semi Automatic Shrink Wrapping Machine

We ULTRA-Z is India’s top Leading Semi Automatic Shrink Wrapping Machine Manufacturer and Exporter in Gujarat, India. We have a number of Shrink wrapping and bottle packing machines designed to meet the customer’s unique requirements. Our machines are designed to work quickly and efficiently and help you to achieve greatest saving.

Whether you need to wrap water bottles, juice or soft drinks in a group, our machines are the perfect choice. Our Packing machine helps you reduce time and cost for your packaging operations. When it comes to packaging, shrink wrapping or bottle packing machines play a very important role to ensuring the safety, protection, and presentation of your bottles.

Our Bottle packing machine provides a secure and tamper-proof packing with the use of heat shrink technology. These semi automatic shrink wrapping machine tightly seal the bottles group to prevent any damage or tampering during transportation. It doesn’t only protect your products from external elements like dust, moisture, UV rays but also ensures the integrity of your brand.

Technical specification:-

Model	ULTRA – SS
Direction of Machine	Straight
Product Size	200 ml to 2000 ml
Air Supply	6 CFM
Power Consumption	14 KW
Capacity	0-6 Packs/Min
Usage Application	Beverages, Pharmaceutical, Cosmetics and Pesticides

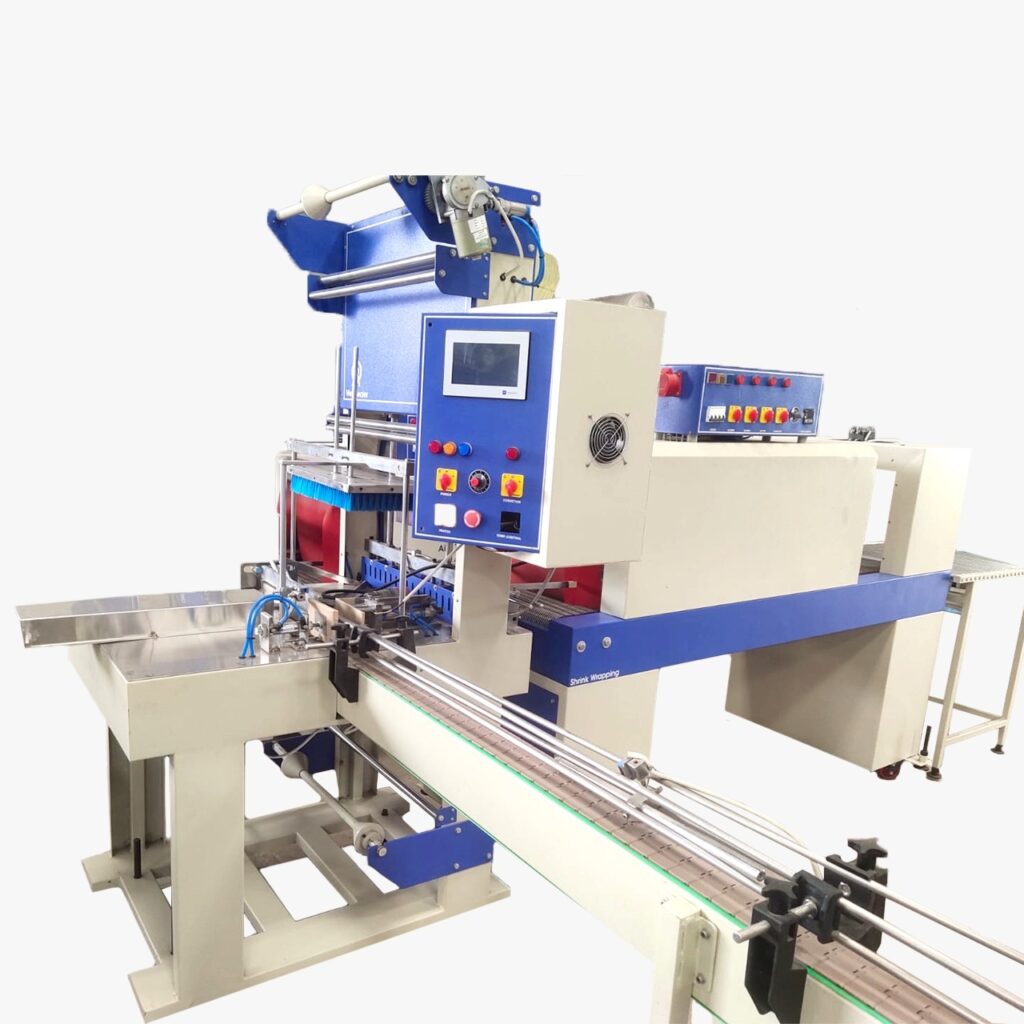

60 BPM Automatic Shrink Wrapping Machine

ULTRA-Z is a leading 60 BPM Automatic Shrink Wrapping Machine manufacturer, exporter. With the advance technology, these bottle packing machines are designed to work quickly and efficiently. Whether you have high-volume production line or need to pack a small number of bottles, our shrink wrapping machines are capable of handling such task.

ULTRA-Z is manufacturer and exporter of Shrink-Wrapping or bottle packing machine. With the advance technology, these bottle packing machines are designed to work quickly and efficiently. Whether you have high-volume production line or need to pack a small number of bottles, our Shrink-Wrapping machines are capable of handling such task.

The automatic shrink wrapping machine reducing labour costs and increasing overall efficiency of your production. Our Shrink Wrapping Machine provides a professional and appealing presentation for your bottles.

Choosing the right shrink wrapping or bottle packing machine for your unique needs is important. Before purchasing the machinery factors such as production speed, size, and packaging requirements of yours should be taken into consideration. Investing in high-quality machines ensures that your machines are running well for a long time it also reduces the risk of downtime and maintenance costs.

Technical specification:-

Model	Ultra – A60
Direction of Machine	Left to Right, Right to Left
Product Size	200ml to 2000ml
Air Supply	8 CFM
Power Consumption	18 KW
Capacity	0-5 Packs/Min.
Usage Application	Beverages, Pharmaceutical, Cosmetics and Pesticides
